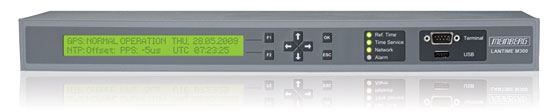

LANTIME M300: GPS-, DCF77-, WWVB- eller MSF-mottaker
Viktige punkter:
- Synchronization of NTP and SNTP compatible clients
- Web based status and configuration interface (Demo) and console based graphical configuration utility
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
- USB port in the front panel to perform updates, to authenticate, save configuration and log files
- Antenna connected with up to 300m of standard coaxial cable RG58
- Two independant RJ-45 ethernet interfaces 10/100 MBit
Lantime M300 er grunnmodellen med en troverdig, nøyaktig og stabil tidskilde.
Den har to Ethernet-porter (10/100baseT). Via display og knapper kan du enkelt
programmere inn IP-adresse, gateway og nettmaske. Du får også muligheten til å programmere
eller kontrollere andre parametere, slik som GPS- eller NTP-relatert informasjon.
|

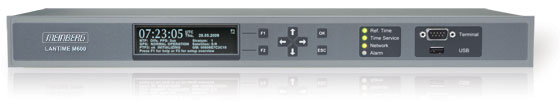

LANTIME M600/GPS/PTPv2: PTPv2/IEEE 1588-2008 Grandmaster Clock and NTP Time Server with integrated GPS radio clock
Viktige punkter:
- Synchronization of IEEE1588-2008 (PTPv2) compatible clients
- Synchronization of NTP and SNTP compatible clients
- Six independent RJ-45 ethernet interfaces 10/100 MBit (incl. 1 x IEEE 1588-2008)
- Antenna connected with up to 300m of standard coaxial cable RG58
- Optional expansions and/or configurations available
Being a very stable IEEE 1588-2008 Grandmaster clock, the LANTIME M600/PTP not only provides a highly
accurate source of synchronization for PTP clients ("slaves"), it additionally introduces the absolute
time ("current time of day") to your PTP networks.
The PTPv2 implementation of the LANTIME is fully compliant to the IEEE 1588-2008 standard and therefore
provides PTP management messages as well.
Les mer om Precision Time Protocol...
|

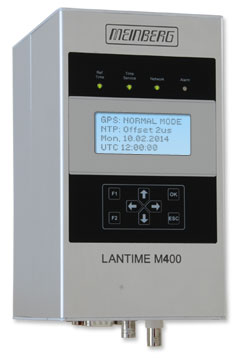

LANTIME M400: Verdens første DIN-monterte NTP-server med grensesnitt for raskere installasjon
Viktige punkter:
- PTP/IEEE 1588-systemer som PTP Grandmaster
- IEC61850-strømsystem
- Prosess, Automatisering
- Opptil 5 ulike NTP-porter (9 i XL), både elektriske og opto
Meinberg lanserer nå sin fjerde modell i M-serien. M400 er en høytytende, fleksibel og kompakt NTP-server i
DIN-utforming. Med et stort display for enklere installasjon og statuskontroll. M400 fås i to ulike modeller,
som standard med plass for ett ekstra kort og som XL med plass til to ekstra kort. Det gjør at enheten passer
til en rekke ulike behov og krav innen:
Sporbar tid i henhold til de nye EU-lovene.
|
